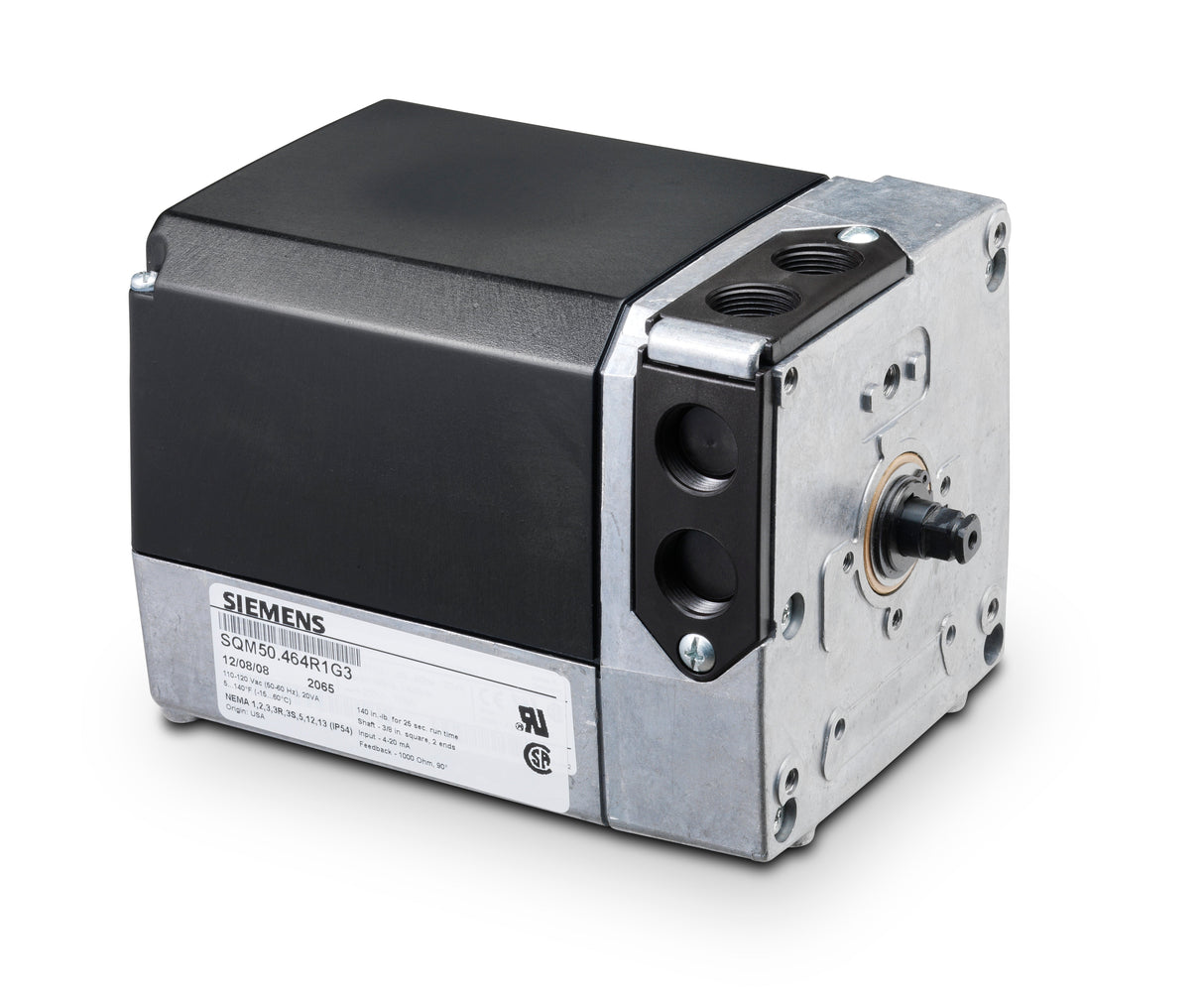

Siemens SQM56.687A2 Servo motor | Actuator - 230v
Siemens SQM56.687A2 Servo motor | Actuator - 230v
The SQM5 actuators are designed to drive air and gas dampers, areas of application are oil and gas burners of medium to larger capacity. The actuators are used primarily for the load-dependent control of the gas flow, oil volume and combustion air volume.
Can be used to replace a Honeywell Mod III or Mod IV actuator when used with the AGA57.3 bracket.
Features
- Two limit switches, plus up to four internal auxiliary switches
- Fully closed “economy position” switch
- Drive shaft and cam drum disengagement clutches
- Auto/manual switch, manual control forward/reverse toggle switch
- Field reversible clockwise (cw) or counterclockwise (ccw) operation
- Selection of field exchangeable single-ended and dual-ended shafts
- Mounting brackets to replace competitive actuators
- Connections for both base and face mounting
- Low hysteresis actuator and potentiometer gearing
- Externally visible position indication
- Selection of input and output signals
- Zero and span adjustment
- Field exchangeable circuit boards and potentiometers
- Electronic damper linearisation function
- Split range and selectable parallel or master/slave operation
- Adjustable input signal override function
Please Note:
Driveshafts for the SQM5x must be ordered separately, see the recommended products for the compatible driveshaft for this model.
Product Details:
By exchanging the 2 motor connecting cables, the actuator’s direction of rotation can be changed from counterclockwise to clockwise.
-
Servo Shaft Diameter
-
Servo Direction
-
Servo Number of Auxiliary Switches
-
Voltage
-
Servo Run Time to 90 Degrees
