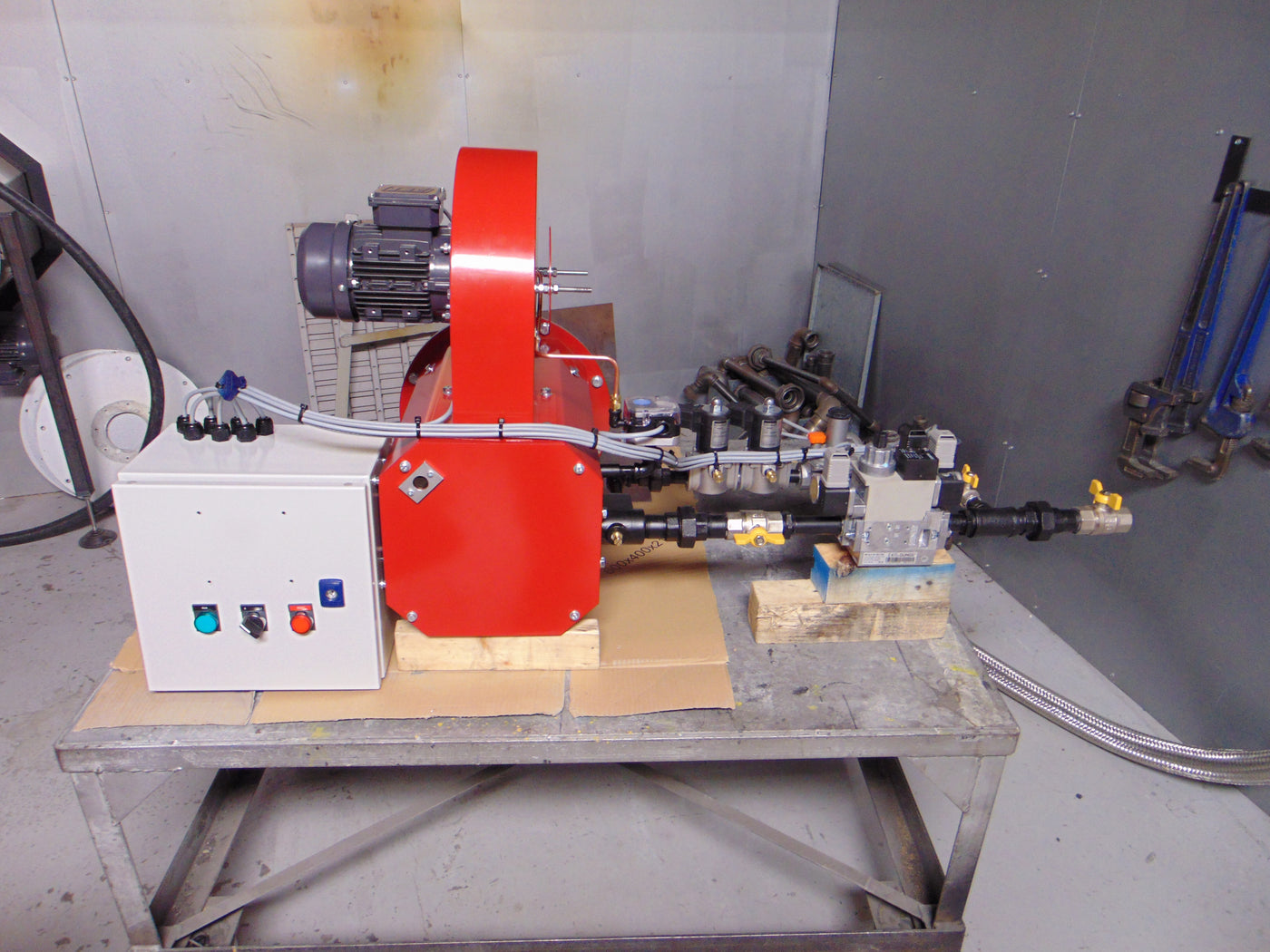

Comtherm TFR Package Burner

Comtherm TFR Burner

The TFR burner series of packaged gas burners have been specifically designed for the firing of immersion tubes installed in liquid tanks.

TFR burners are blown units, this means that there is no requirement for a suction exhaust fan on the tube. This enables simple installation and low maintenance. The unit is simple and safe to operate. All burners are pre-fired and fully tested before leaving our works.

​The TFR burner head has been specially developed for small bore applications and is available for firing into immersion tubes with diameters up to 200mm and length to diameter ratios up to 140:1.​

The TFR burner uses split combustion cone heads where air is introduced into the flame at three points and provides cooling for the combustion tubes.

​All Comtherm burners are designed with ease of maintenance a top priority. All parts can be removed without unbolting the unit from the mounting flange. The rear panel on the burner can be removed, which allows easy access to the gas nozzle, spark electrode and flame sensor.

TFR Technical Features

  • Typical Applications

    • Anodising Lines
    • Quench Tanks
    • Spray Tanks
    • Chem Coat
    • Dip Tanks
    • Fryers
    • Vats
  • Turndown

    Up to 30:1

  • Burner Duty

    The TFR burner is available in sizes from 50kW to 750kW and available in on-off and high-low versions

  • Gas Supply Pressure

    Typically 20mbar

  • Fuel Types

    • Natural gas
    • LPG
  • Flame Length

    mm (max)

Downloads

  • TFR Burner Manual

    Download a PDF copy by clicking the link below

  • TFR Burner Datasheet

    Download a PDF copy by clicking the link below
