Comtherm PH Modular Burner

Comtherm PH Burner

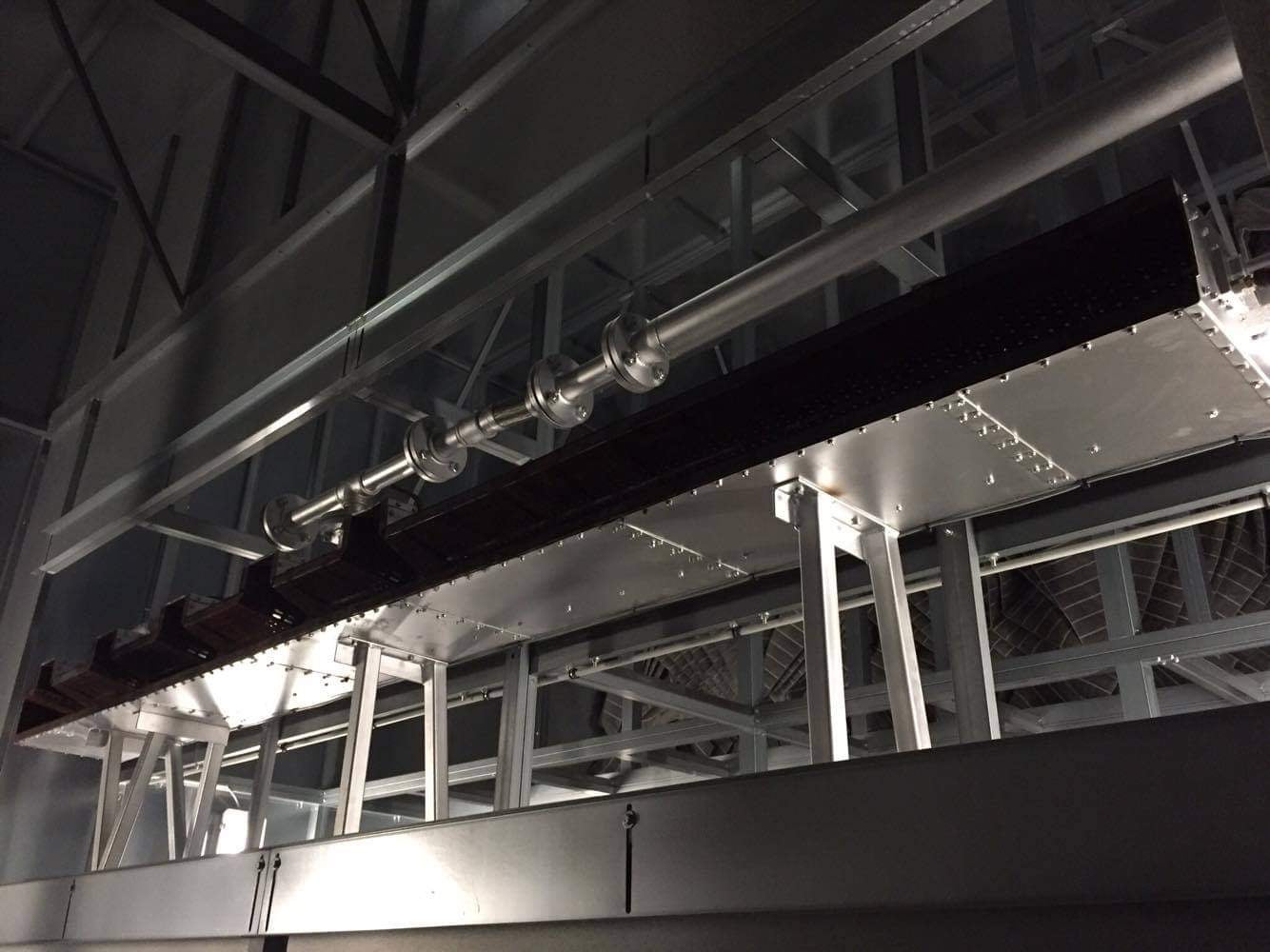

The PH and PH-C series of gas burners are designed to operate in systems where short flames and high turndown ratios are required. The burners consist of a flange mounted, in-line combustion head which is available in Straight, T and X sections. This enables the burners to be constructed to suit the appliance layout. The units are modular; therefore, they can be constructed to give any output capacity required.

The PH burner is rated at 300mm section whilst the PH-C is rated at 600 kW per 300mm section. Each unit can be supplied with valves and safety controls forming a fully packaged combustion module. These modules offer simple and reliable operation with low emissions.

PH Technical Features

  • Typical Applications

    • Printing Lines
    • Ovens
    • Curing Rooms
    • Spray Booths
    • Dryers
    • Preheaters
    • Lehrs

  • Turndown

    ​Up to 30:1

  • Burner Duty

    The PH burners are modular in construction.
    PH = 300kW per 300mm section
    PHC = 600kW per 300mm section.

  • Gas Supply Pressure

    Typically 20mbar.

  • Fuel Types

    • Natural gas
    • LPG
    • Special arrangements for low c.v. gasses.
  • Flame Length

    600mm (max)


  • PH Burner Manual

    Download a PDF copy by clicking the link below

  • PH Burner Datasheet

    Download a PDF copy by clicking the link below
